2 4 8 16 channel CWDM Mux Demux Module multiplexer cwdm
Products Overview
Features
Low Insertion Loss
Excellent Channel Isolation
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Low Cost
Applications
WDM Channels Add/Drop Systems
WDM Networks & Systems
CATV Fiber Optical Links
Long Haul & Short-Distance Applications
Accessing LAN & WAN Network
Performance Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | 18 Channel | |||||
| Mux | Demux | Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | 1270~1610/1271~1611 | ||||||||
| Center wavelength Accuracy (nm) | ±0.5 | ||||||||
| Channel Spacing(nm) | 20 | ||||||||
| Channel Passband (@-0.5dB bandwidth (nm) | +/-7.5/+/-6.5 | ||||||||
| Insertion Loss (dB) | ≤1.5 | ≤2.5 | ≤3.5 | ≤3.5 | |||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ≤1.5 | |||||
| Channel Ripple (dB) | 0.3 | ||||||||
| Isolation(dB) | Adjacent | >30 | |||||||
| Non-adjacent | >40 | ||||||||
| Insertion Loss(dB) | Express with filter | >30 | |||||||
| Express without filter | >12 | ||||||||
| Inertion Loss Temperature Sensitivity (dB/ºC) | <0.005 | ||||||||
| Wavelength Temperature Shifting (nm/ºC) | <0.002 | ||||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||||||
| Directivity (dB) | >50 | ||||||||
| Return Loss(dB) | >45 | ||||||||
| Maximum Power Handling (mW) | 300 | ||||||||
| Opterating Temperature (ºC) | -40~+85 | ||||||||
| Storage Temperature (ºC) | -40~+85 | ||||||||
| Package dimension (mm)(LGX box) | L155.5xW102(129)xH29 | ||||||||
1,Above specifications are for devices without connector.
2,Specifications may change without notice.

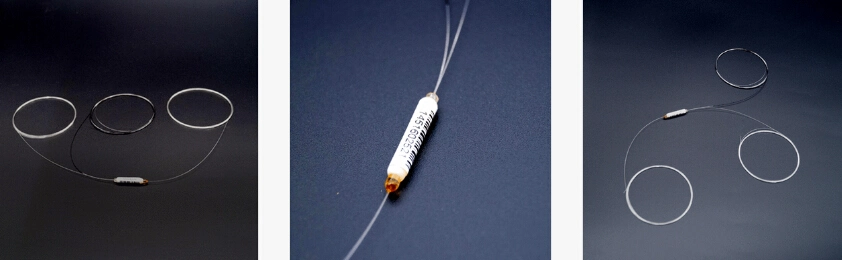

CWDM DWDM Module CWDM DWDM Filter Device
