100G optical cable aoc

QSFP28 + Active Optical Cables (AOCs) are active optical cables of the QSFP + interface. The module has a photoelectric conversion device inside to convert the electrical signals into optical signals and transmit distances up to 100 meters. The products have four channels, each channel transmission rate up to 25.3125Gb / s, rate of 100Gb / s. Its low power consumption, low bit error rate, easy to manage, high-performance features are widely used in short distance high-speed connection such as 100 Gigabit Ethernet, 100Gigabit switches, 100 Gigabit servers, supercomputers, cloud computing and cloud storage networks.

Features

   • Transmission data rate up to 25.3125Gbit/s per channel

  • Compliant with QSFP + MSA &SFF-8665 standard

 • Ompliant with IEEE 802.3bj 100GBASE SR4

  • Hot pluggable electrical interface

  • Differential AC-coupled high speed data interface

  • OM3/OM4 Multi-mode optical fibre cable of up to 100m

  • 4 channels 850nm 25G VCSEL array

  • 4 channels 25G PIN photo detector array


• Supports serial ID functionality thru EEPROM

  • Management Interface and digital diagnostic

  • Power consumption less than 2.5W

  • 3.3V power supply voltage

  • Operating temperature 0°C to +70°C

  • RoHS 6 compliant(lead free)



Application

  • 100Gbs Ethernet

  • data storage and communications industry

  • Server and data storage devices

  • Switch / router / HBA

  • Data center and in-rack connections

• InfiniBand FDR/EDR






Packaging & Shipping

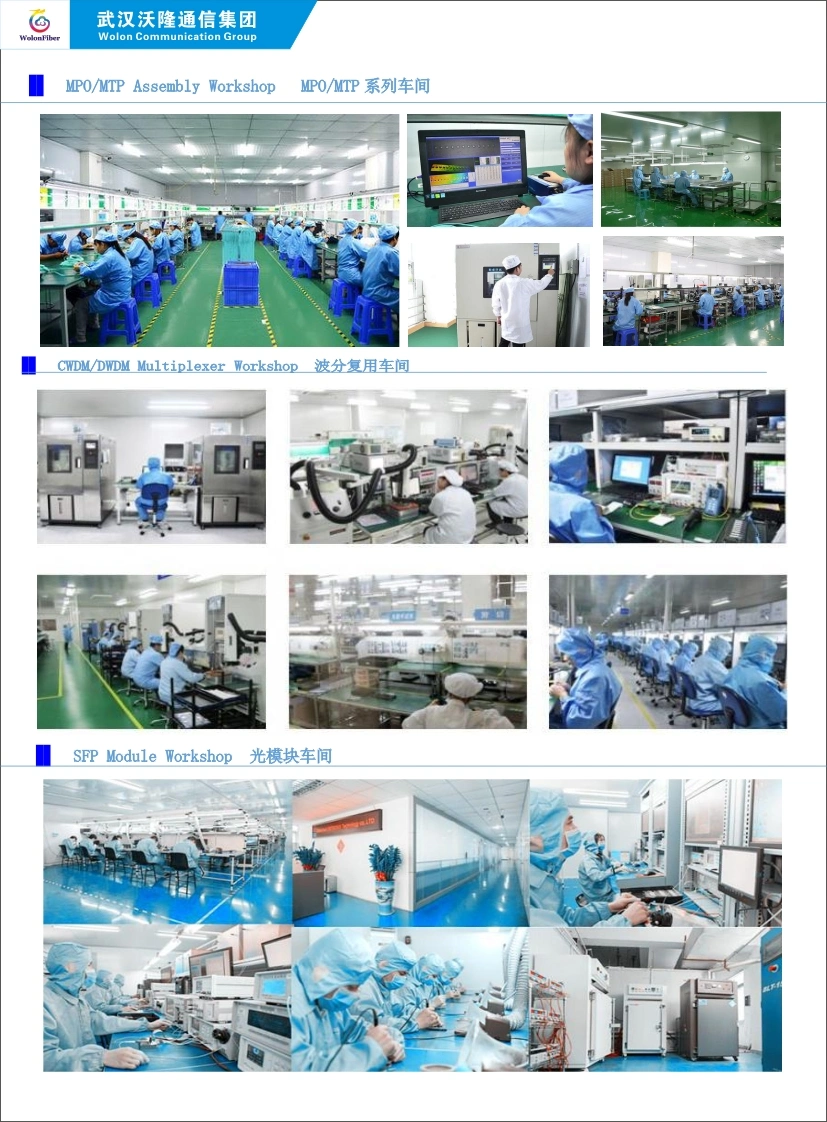

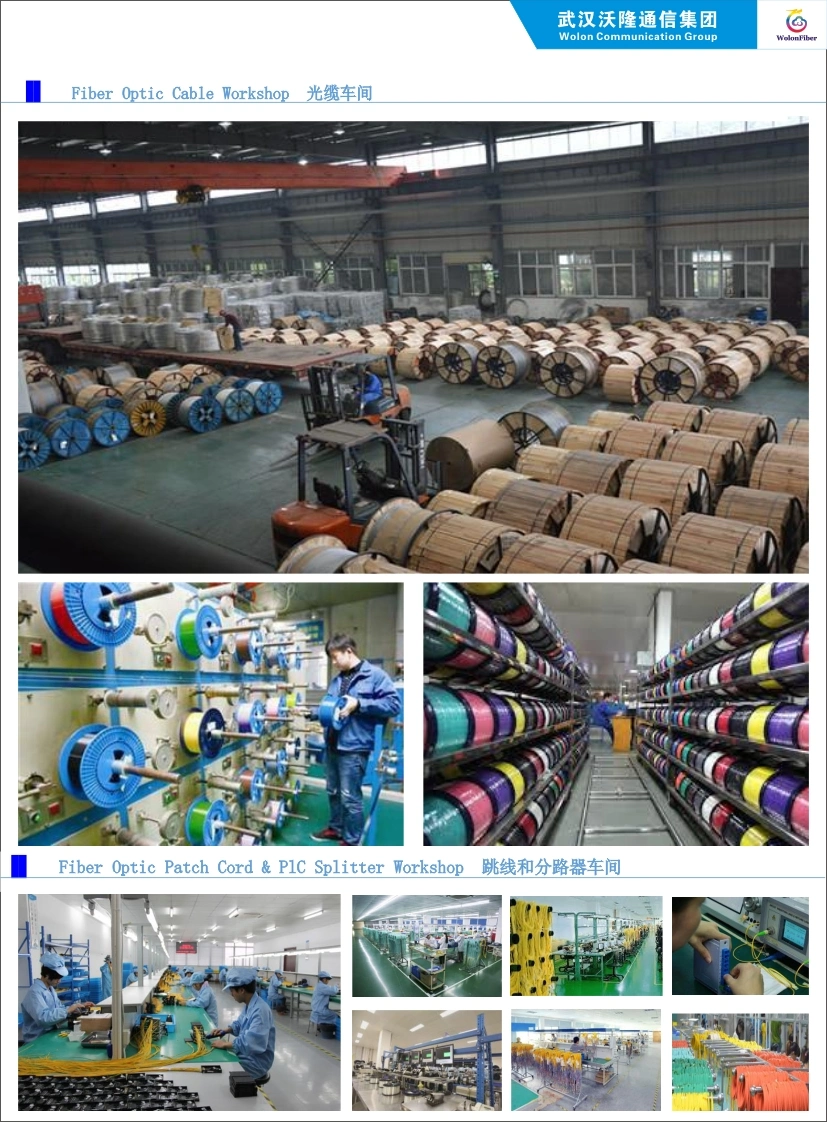

Company Information
