Product Description
40Gb/s QSFP+ PSM4 10KM is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
Specification:
Form type: | QSFP+ | Data rate: | 40Gbps |
Transmission Distance: | 10KM | Wavelength: | 1271nm/1291nm/1311nm/1331nm |
Cable type: | SMF | Interface: | LC Duplex |
DDM Support: | Yes | Operating temperature: | 0°C to +70°C |
Voltage: | 3.3V |
|
|
Regulatory Compliance: | CE,FCC,ROHS COMPLIANT, Compliant to IEEE 802.3ba, Compliant to SFF-8436 | ||
Notes:
1. Transmitter wavelength, RMS spectral width and power need to meet the OMA minus TDP specs to guarantee link performance.2. The eye diagram is tested with 1000 waveform.
Stucture:

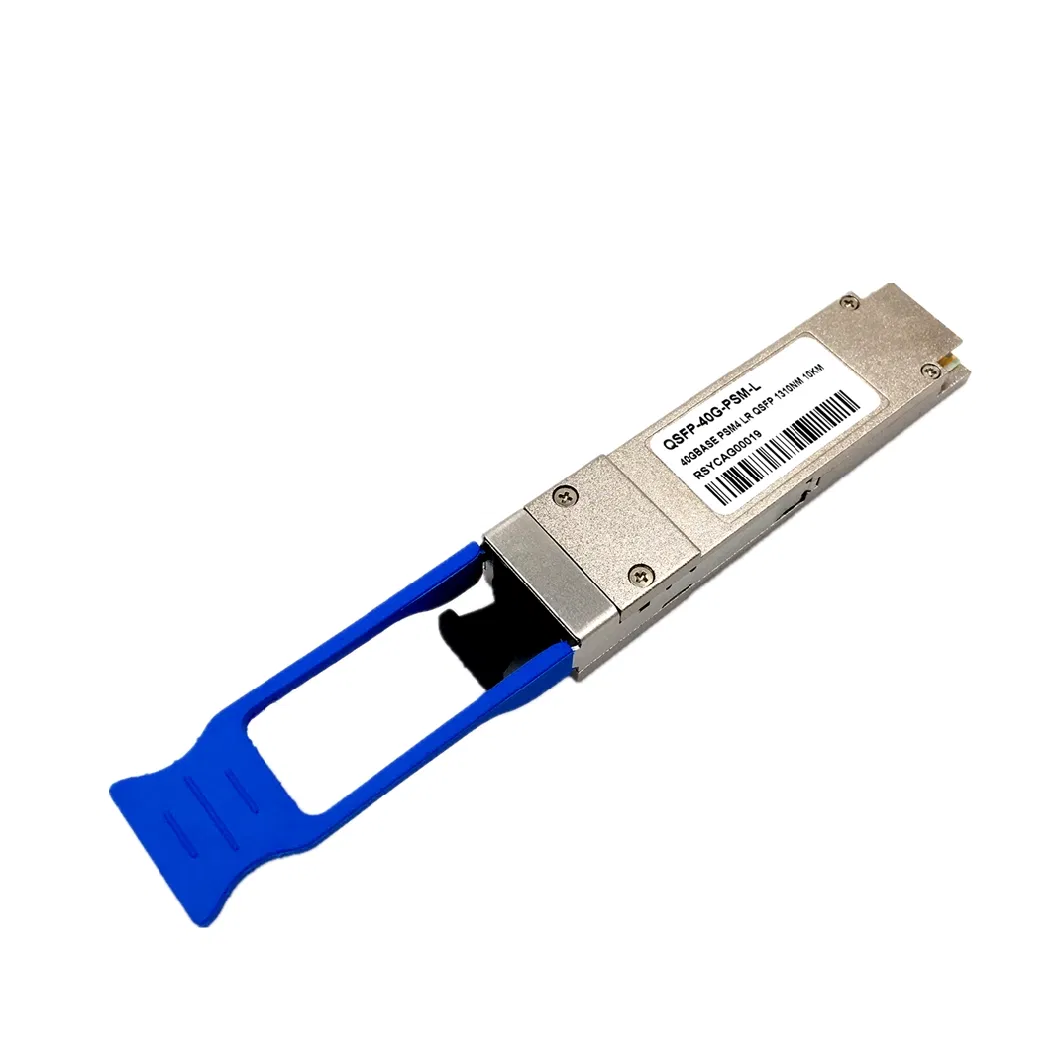

Product pic:
