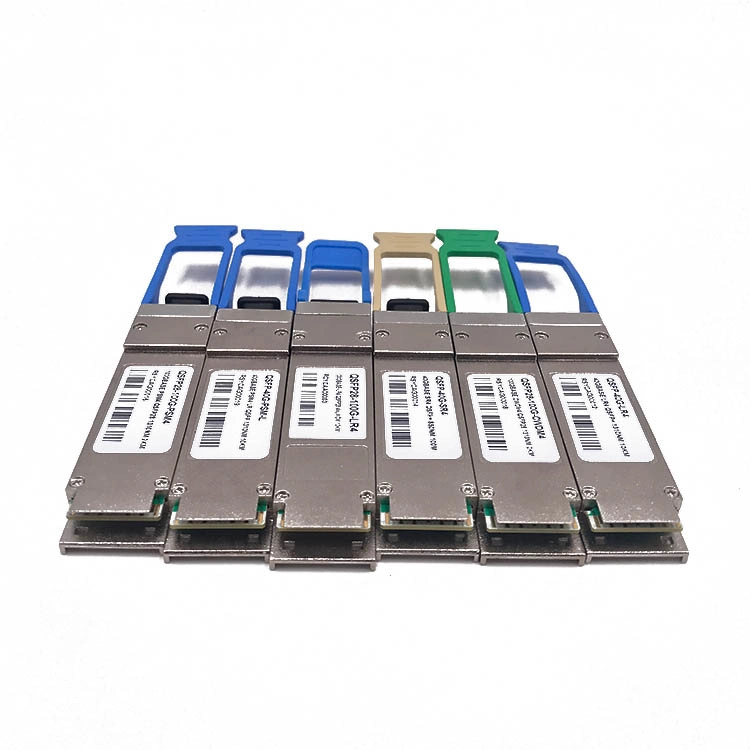

RoHS Compliant 100Gb/s QSFP28 CWDM4 Optical Transceiver Optical Receiver
The 100Gb/s QSFP28 CWDM4 Optical Transceiver Optical Receiver is a Four-Channel, Pluggable, dual LC, Fiber-Optic QSFP28 Transceiver for 100G Ethernet applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 2km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1271nm-1331nm DFB laser array. QSFP28 CWDM4 is one kind of transceiver which provides increased port density and total system cost savings. They are compliant with the QSFP28 MSA, CWDM4 MSA and portions of IEEE P802.3bm.
· Four-channel full-duplex transceiver modules
· Transmission data rate up to 26Gbit/s per channel
· Up to 2km transmission of single mode fiber
· Low power consumption <3.5W
· Operating case temperature 0ºC to +70ºC
· 3.3V power supply voltage
· RoHS 6 compliant
· Hot Pluggable QSFP form factor
· LC connector receptacle
· Built-in digital diagnostic function
· 100G Ethernet
· Proprietary High Speed Interconnections
100G CWDM4 application with FEC
This transceiver is specified as ESD threshold 1kV for SFI pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
Temperature monitor absolute error
Over operating temperature range
Supply voltage monitor absolute error
Over full operating range
Channel RX power monitor absolute error
Channel Bias current monitor
Channel TX power monitor absolute error
Packaging & Shipping
